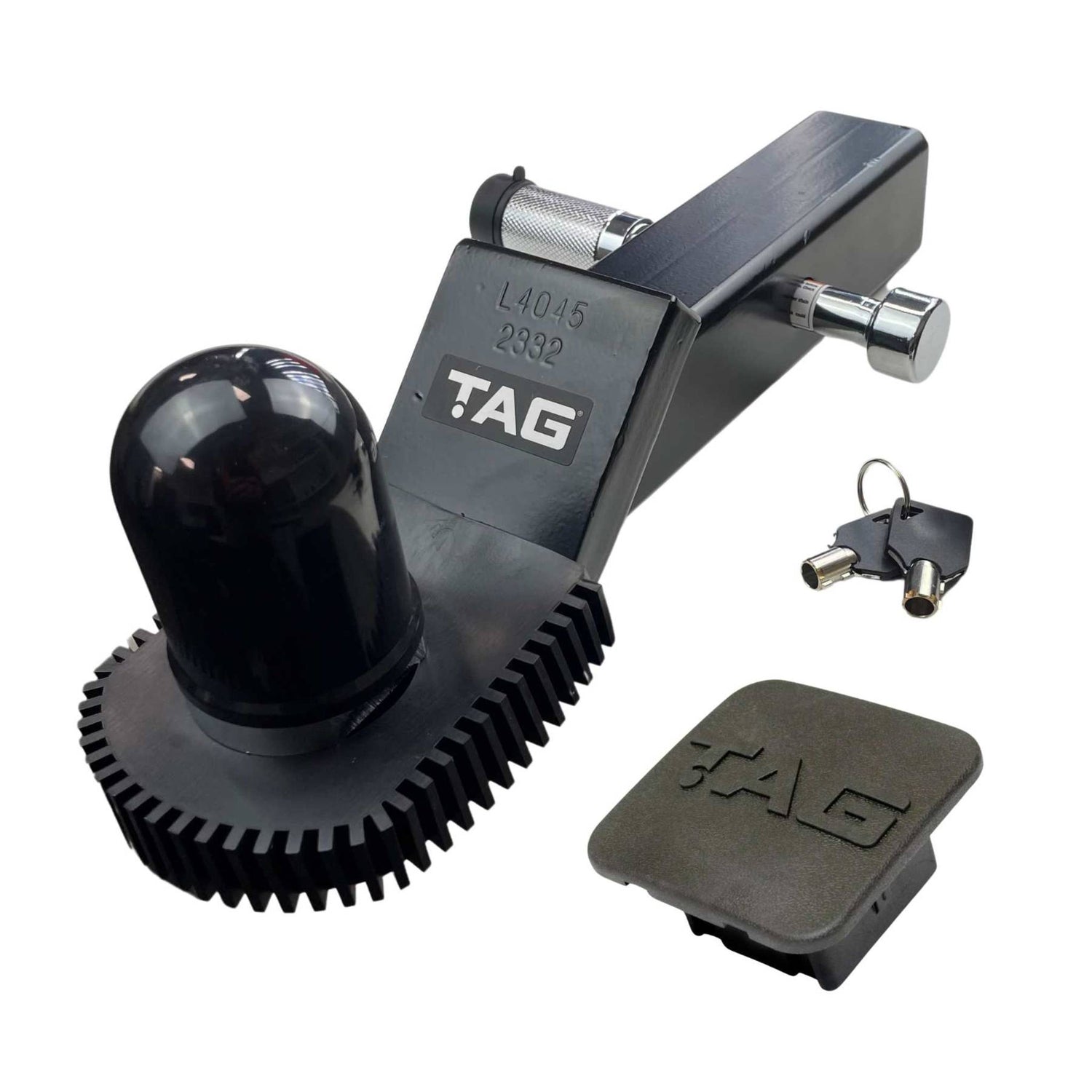

TAG Ball Mount Hitch Kit (Lug + Locking Pin + Tow Ball + Ball Cover + Hitch Cover + Shin Protector)
TAG Ball Mount Hitch Kit (Lug + Locking Pin + Tow Ball + Ball Cover + Hitch Cover + Shin Protector) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Ball Weight [kg]: 350
- Hitch Type: 50mm Square Hitch Receiver
- Drop: 18mm
- Rise: Can be used in Drop or Rise mode
- Length: 338
- Length (Pin To Ball): 208mm
- Front to Pin (mm): 250
- Back to Pin (mm): 90
- Tongue Face: 135°
- Coating: Powder Coated
- Type: Security & Protection
- Material Type: Chrome
- Diameter: 50mm
Delivery and Shipping
Delivery and Shipping
Delivery charges will be calculated with our shipping calculator at the checkout.
We will endeavor to ship your order within 2 business days and we will keep you updated during the shipping process.
Some items are Pre-Order or Back-Order, these will have their own longer shipping timeframes. Please contact us if you would like a delivery estimate for these items.
Whether you are starting your towing setup or need to replace your existing one, this is a complete ball mount solution with everything you need to protect your towing set-up from premature wear, rust or theft.
This Kit Includes:
-
TAG Tow Ball Mount - 208mm Long, 135° Face, 50mm Square Hitch
208mm Long (Hitch Pin Hole to Tow Ball Hole)
135° Tongue Face
Drop: 18mm
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
3500kg Gross Trailer Weight
350kg Ball Weight
Durable Powder-Coated Finish
ADR 62/02 Compliant
TAG Limited Lifetime Warranty
-

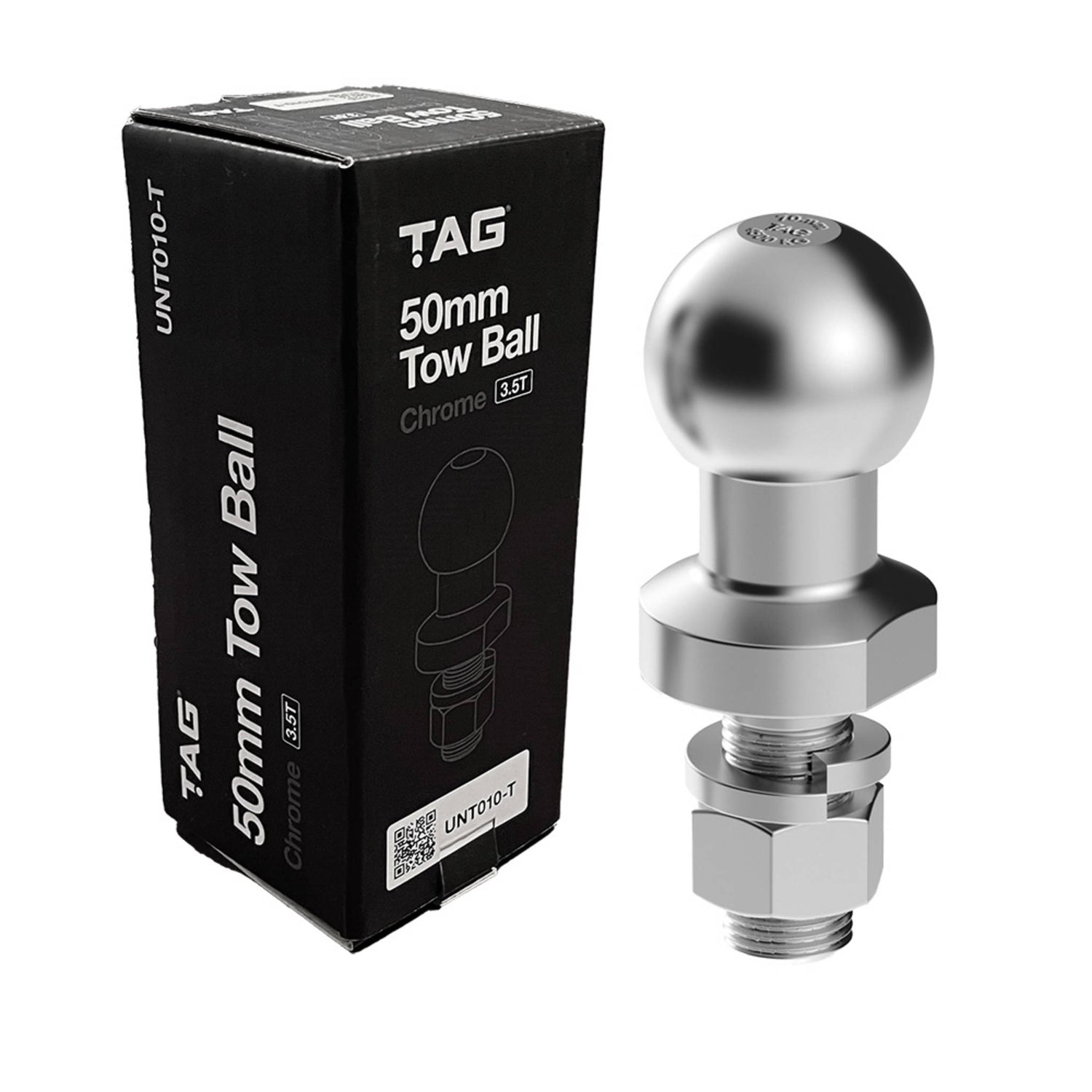

TAG Chrome Tow Ball - 50mm, 3.5 tonne
50mm Thread
Chrome
Load rate 3500kg
62mm shank
This tow ball conforms to the requirements of AS4177.2-2004 Appendix A Static Test.
-
TAG Locking Hitch Pin - Straight
For Class 4 hitch ball mount
Round shape lock up.
1 x set of Keys (2) included
-

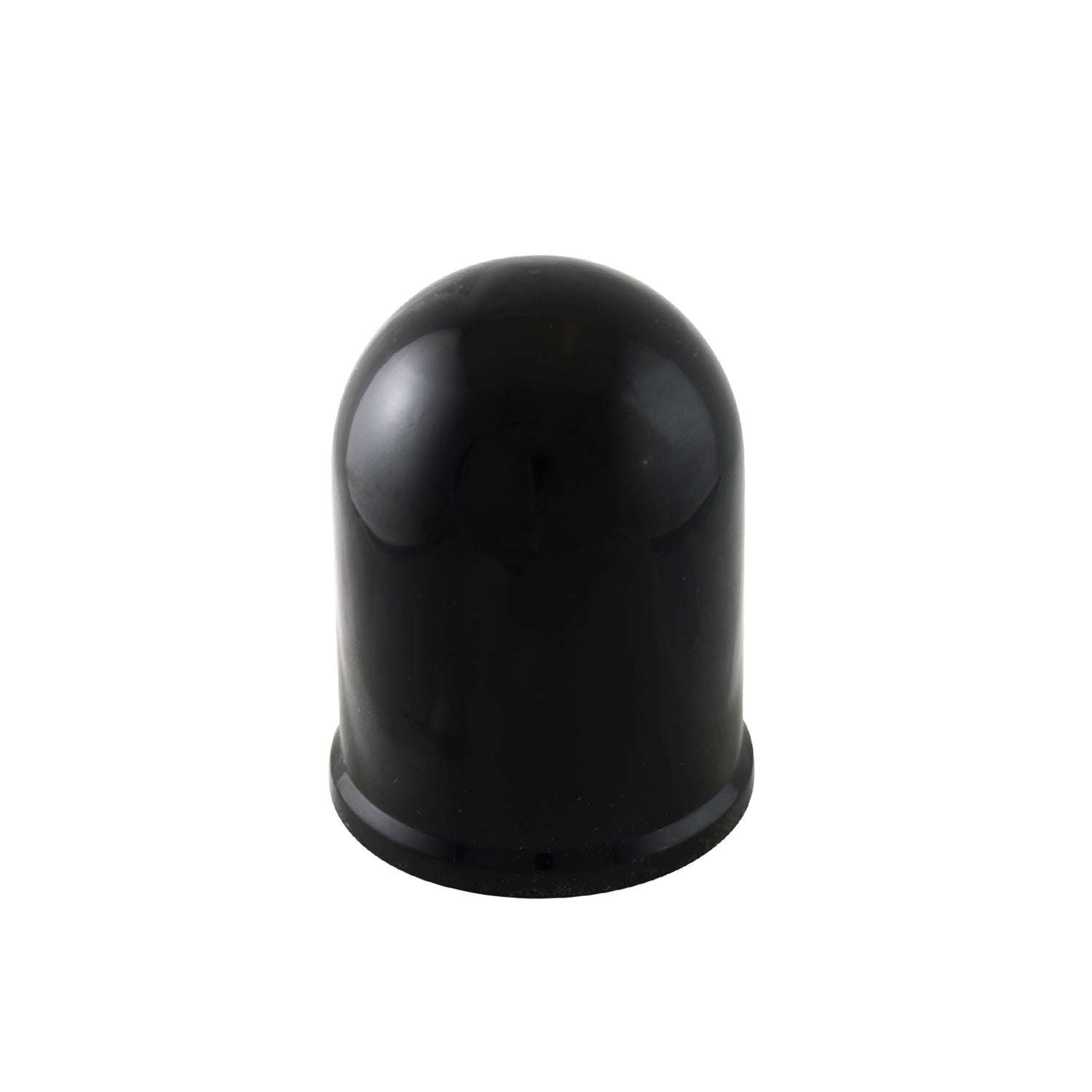

TAG 50mm Tow Ball Cover
50mm Tow Ball Cover, black with spring clip
-
TAG Tow Hitch Cover
Keep your tow hitch clean and safe from damage and ingress while not in use. The TAG snug-fitting tow hitch cover suits all 50mm x 50mm square hitch receivers.
-
TAG Shin Protector
Save your shins and knees from taking a whack, by putting a TAG Shin Protector around your tow ball.
